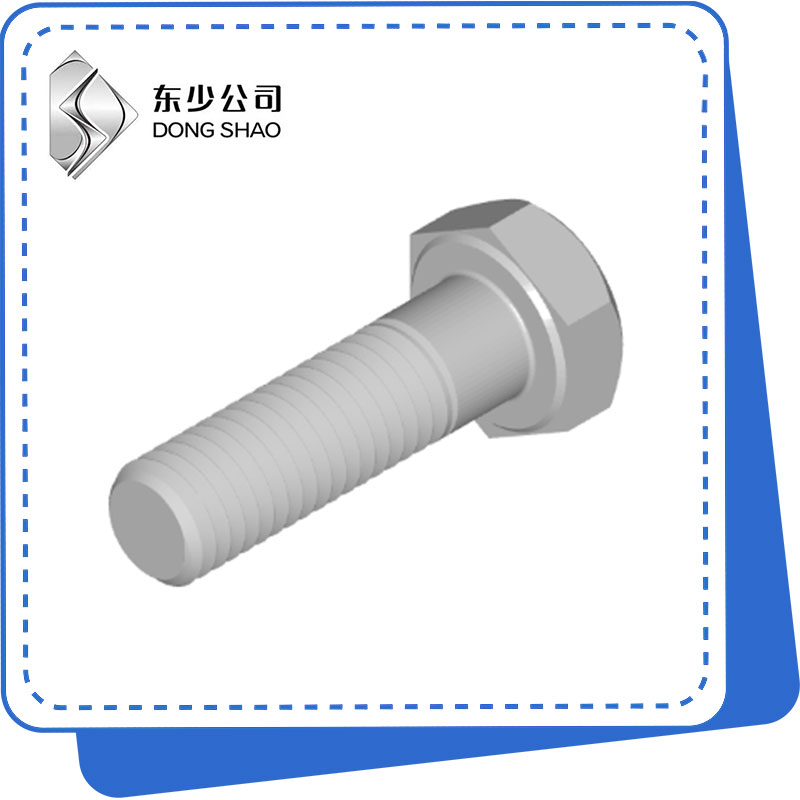

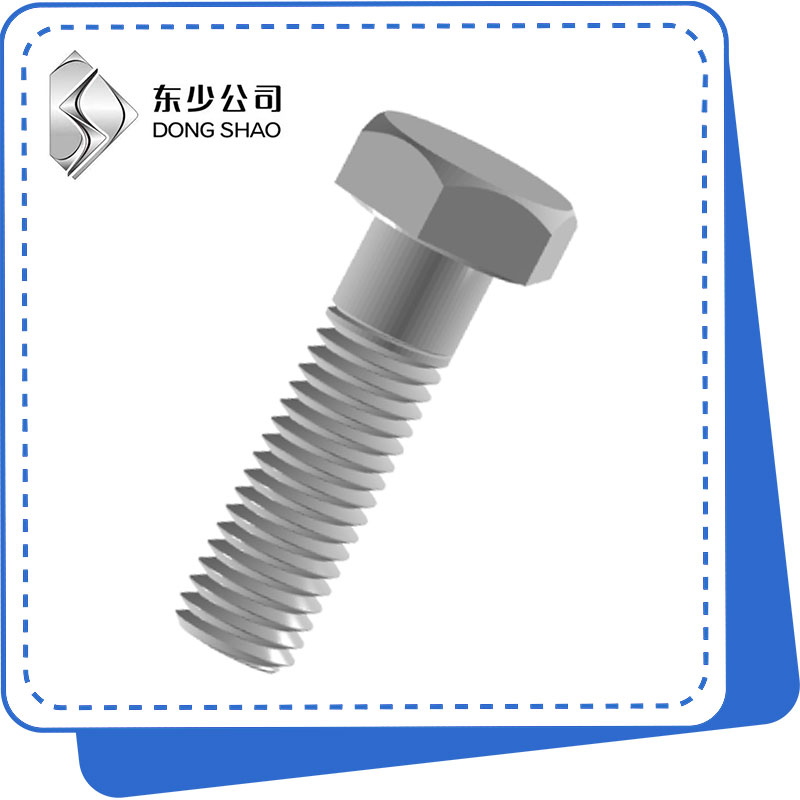

Amabhawodi amakhulu eHex Okwakhiwa Kwensimbi

I-DONGSHAO ingenye yochwepheshe be-China Large Hex Bolts abakhiqizi nabahlinzeki be-Steel Structure, uma ufuna ama-Large Hex Bolts Okwakhiwa Kwensimbi ngentengo ephansi, xhumana nathi manje!

Thumela Uphenyo

Incazelo Yomkhiqizo

Thola ukukhethwa okukhulu kwe-Large Hex Bolts for Steel Structure evela e-China e-DONGSHAO. Ukukhiqizwa kwesakhiwo sensimbi ye-hexagonal bolt impahla kanye nokwelashwa kwendawo kuhle kakhulu, amandla okuqiniswa aqinile, ukwethembeka okuphezulu, akulula ukukhululeka, kulungele izinhlobonhlobo zemishini emikhulu. Imishini kanye nobunjiniyela besakhiwo sensimbi;Izincazelo eziphelele, zingahlangabezana nezidingo ezihlukene zezingxenye ezicacisiwe, ububanzi obuningi bokusebenza; Ngezici ezijwayelekile, ukufakwa kalula, ukulungiswa okulula.

Isakhiwo sensimbi i-hexagon bolt enkulu iwuhlobo lwesixhumi esisetshenziswa kabanzi kubunjiniyela besakhiwo sensimbi, esisetshenziswa kakhulu ukuxhuma indawo yokuxhumana yepuleti lesakhiwo sensimbi.

Ipharamitha Yomkhiqizo

(mm)	M12	M16	M20	M22	M24	M27	M30	M36
P	1.75	2	2.5	2.5	3	3	3.5	4
b max	23	28	33	34	37	39	42	50
b imiz	21	26	31	32	34	37	40	48
nge max	15.2	19.2	24	26	28	32	35	41
ds max	12.7	16.7	20.84	22.84	24.84	27.84	30.84	37
ds imiz	11.3	15.3	19.16	21.16	23.16	26.16	29.16	35
futhi min	23.91	29.56	35.03	39.55	45.2	50.85	55.37	66.44
k max	8.45	10.75	13.9	14.9	15.9	17.9	20.05	24.05
k imiz	7.55	9.25	12.1	13.1	14.1	16.1	17.95	21.95
r imiz	1.2	1.2	1.5	1.5	2	2	2	2
s max	22	27	32	36	41	46	50	60
s imiz	21.16	26.16	31	35	40	45	49	58.8
