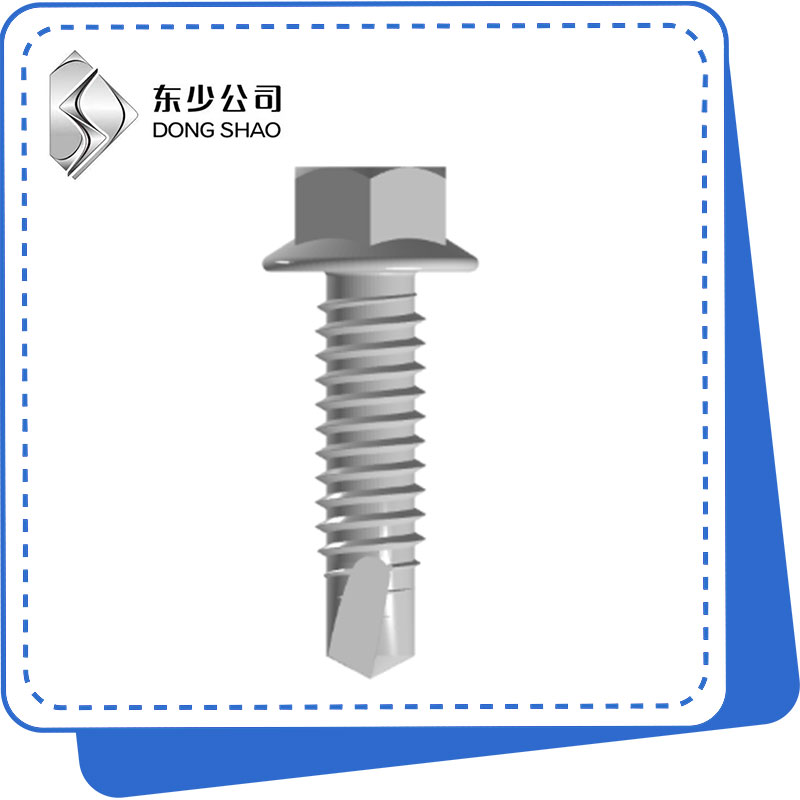

I-Hex Flange Head Tapping Screw Thread

I-DONGSHAO njengomkhiqizi wekhwalithi ephezulu ye-Hex Flange Head Tapping Screw Thread, ungaqiniseka ukuthi uthenga i-Hex Flange Head Tapping Screw Thread efektri yethu futhi sizokunikeza isevisi engcono kakhulu yangemva kokuthengisa kanye nokulethwa okufika ngesikhathi.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-DONGSHAO njengomkhiqizi ochwepheshe, singathanda ukukunikeza ikhwalithi ephezulu ye-Hex Flange Head Tapping Screw Thread. Futhi sizokunikeza isevisi engcono kakhulu yangemva kokuthengisa kanye nokulethwa okufika ngesikhathi.

Izikulufu ezinezinhlangothi ezine eziyisicaba ezizibhobhozayo zenziwe ngensimbi yekhwalithi ephezulu, enamandla amakhulu, ukumelana nokugqwala nezinye izici zokuqinisekisa ikhwalithi yomkhiqizo; Inombolo evamile yesikulufu esizibhobhozayo esiyi-hexagonal flanged self-tapping i-GB/T15856.4 -2002, okuyindinganiso kazwelonke. Isikulufu sakhiwe izingxenye ezimbili: i-drill bit kanye nesikulufu. Lapho sihlanganisa, isikulufu siqala sibhoboza imbobo engezansi yochungechunge bese sikhipha umucu ongaphakathi. Ukwakheka kwekhanda layo kungama-hexagonal flange, okuwumumo wekhanda ovamile wezikulufu ezizishayayo, nezinye izimo zekhanda ezivamile zihlanganisa ikhanda eliyindilinga, ikhanda elinomphetho, ikhanda lepani, usinki nokunye.

Ukusetshenziswa kwe-hexagonal flange self-tapping screw kubanzi kakhulu, kungahlanganiswa kundaba, kuncike emculweni wayo, umzimba ohlanganisiwe "uthepha - ukubhoboza, ukucindezela, ukucindezela" ngaphandle kwentambo ehambisanayo, ukuze zihambisana eduze komunye nomunye. Lolu hlobo lwesikulufu luvame ukusetshenziselwa okungezona ezensimbi (ukhuni, i-wallboard, ipulasitiki, njll.) noma ukulungiswa kwepuleti lensimbi elincanyana, njengoxhumano phakathi kwesakhiwo sensimbi sepuleti lensimbi lombala, ukuxhunywa kodonga, uxhumo. wepuleti lensimbi lombala kanye ne-purlin. Ngaphezu kwalokho, kuvame ukusetshenziselwa ukulungiswa kwamapaneli odonga kanye nokufakwa kweminyango kanye neWindows.

Ipharamitha Yomkhiqizo

(mm)	ST2.9	ST3.5	ST4.2	ST4.8	ST5.5	ST6.3
P	1.1	1.3	1.4	1.6	1.8	1.8
ubuningi	1.1	1.3	1.4	1.6	1.8	1.8
kwe max	6.3	8.3	8.8	10.5	11	13.5
dc imiz	5.8	7.6	8.1	9.8	10	12.2
s max	4	5.5	7	8	8	10
s imiz	3.82	5.32	6.78	7.78	7.78	9.78
futhi min	4.28	5.96	7.59	8.71	8.71	10.95
k max	2.8	3.4	4.1	4.3	5.4	5.9
k min	2.5	3	3.6	3.8	4.8	5.3
r max	0.4	0.5	0.6	0.7	0.8	0.9
	0.7	0.7	1.75	1.75	1.75	2
	1.9	2.25	3	4.4	5.25	6
z imiz	6.25	6.8	8.7	9.3	11	12
